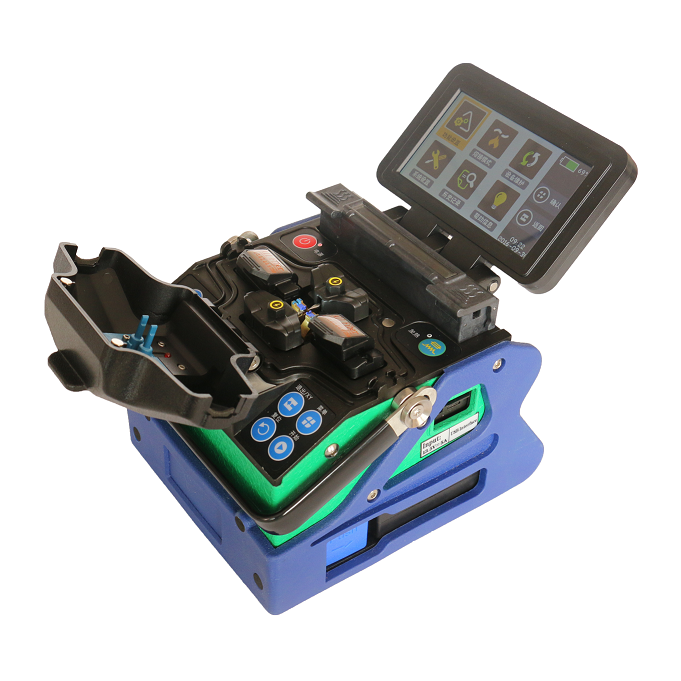

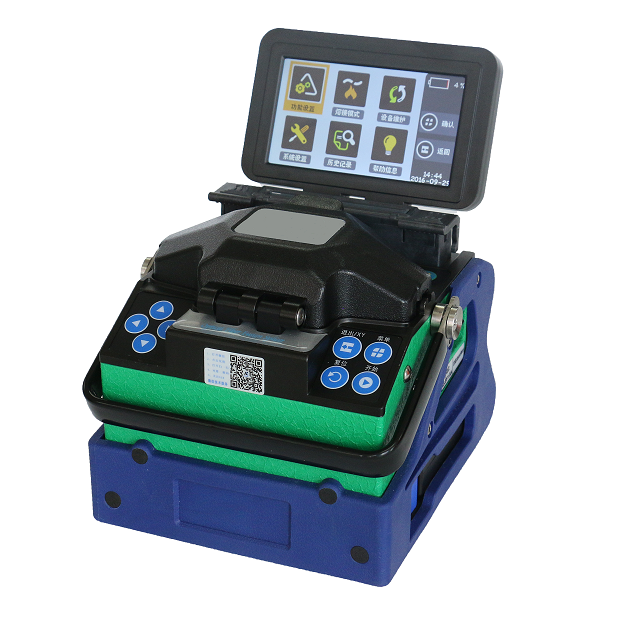

0ptical fiber fusion splicer is a mini fiber splicing equipment which is compactly designed, easy to carry and operation. It has vivid and exquisite image-forming system and high precision image processing technology on fiber alignment which leads to its high proficiency in splicing and low loss. Its beautiful operation interface and body design which conforms to operation principle of ergonomics greatly improve user experience. It is equipped with large capacity lithium battery which provides reliable guarantee for a long time field work. In summary, Removable plug large lithium battery capacity, providing a credible guarantee for field work for a long time.it is a totally automatic small, light and beautiful Optical fiber fusion splicer with high performance, high safety, low power consumption and can be easily operated.
(1) Based on the principle of PAS（Lateral Projection System）, adopt advanced image detection algorithm;
(2) Double core align structure, higher success rate of fusion and lower loss;
(3) Adopt 4.3 inches 16:9 TFT colorized LCD screen;
(4) Typical fusion time: 9sec; fast time: 7sec
(5) Typical heating time: Automatic v-shaped heat shrinkable 9 seconds, cover and automatic heating ;
(6) Reliability design, strengthen shockproof, dust proof and other functions;
(7) Low power consumption design makes it possible to work long time with many functions operate at the same time;
(8) Multi-functional, small-sized, portable, can greatly improve working efficiency;
(9) Can detect the air pressure, temperature and humidity and other environmental factors and automatically calibrate arc.
(10）Removable plug the battery, convenient and quick charge;
(11）Cornering, the straps can be used for aerial work.
