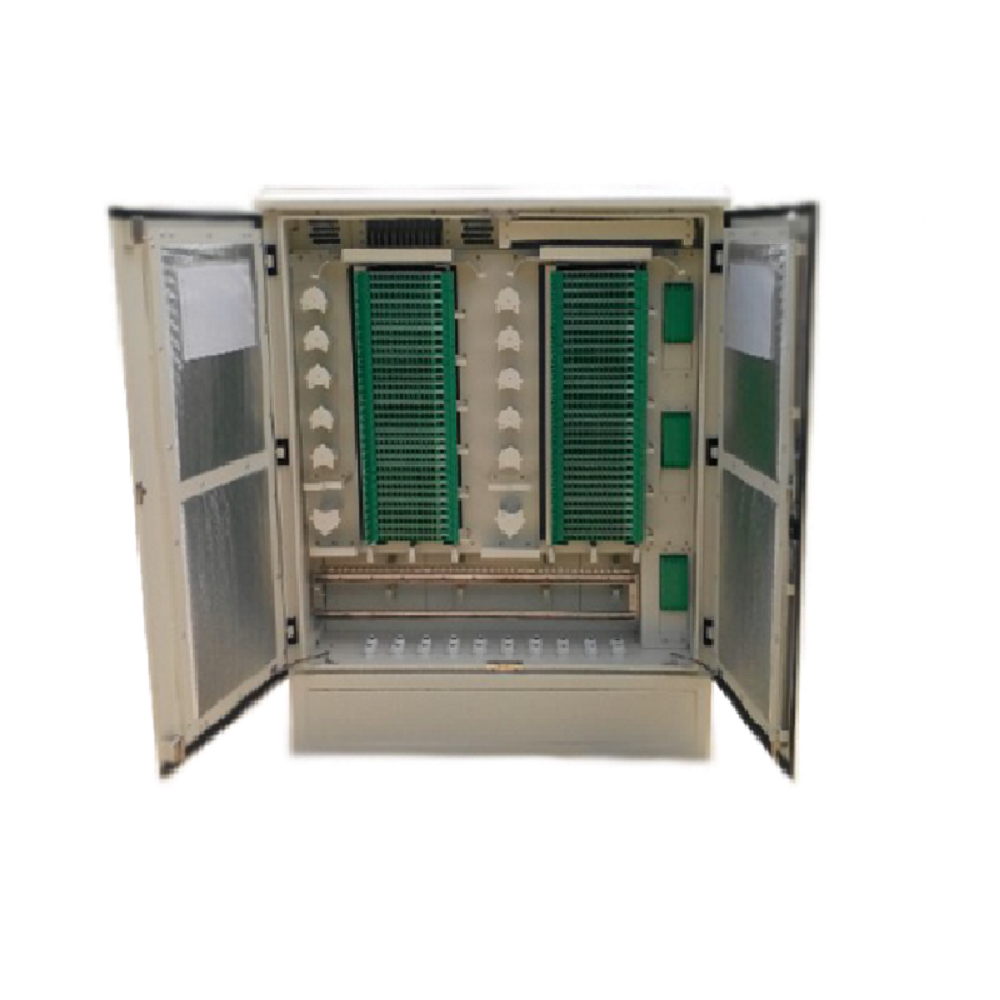

ตู้พักกระจายสายไฟเบอร์ออพติกอลูมิเนียมแบบตั้งพื้นขนาด 720F

คุณสมบัติสินค้า:

SKU : OFCCC-720F-Ground-Alu

Share

  1. GENERAL Optical Distribution Frame STREET Cabinet, with large capacity, is designed to provide fibre splicing, splitting, cross connection, along with optical cable routing, for outdoor applications and in fibre optic Access Network.
  2. Features
    • Front operation structure. Easy operation and maintenance
    • Paint with priming lon phosphate treatments and powder coating for housing. Provides sealing and locking mechanism for cable inlet
    • High quality Aluminums plate and die stamping for mechanical parts, which features spray coating surface treatment ensuring high strength and excellent corrosion proof performance
    • Offers anti-aging performance. Provides high strength, light weight. Available with acid-base, corrosion heat, and humidity proof performances
    • Provides integrated splicing and distribution trays. With compact structure and complies with FC, SC, ST and LC termination requirements of the optical fibre connectors
  3. Specifications
    • Environmental Conditions:
      • Work temperature: -40 °C ~ +60°C ;
      • Relative humidity: ≤90% (+40°C)
      • Atmospheric Pressure: 70KPa~106Kpa.
    • Dimension and Weight
      • Dimensions (H x W x D): ≤1700 x ≤1200 x ≤400 (mm)
      • Weight: ≤ 2600kg. with Full Equipment
    •  Materials and Accessories
      • PC insertion loss: ≤0.2dB, APC insertion loss: ≤0.3dB
      • PC return loss: >50dB, APC return loss: >60dB
      • Life: >1000 times (plug-in & pull-out).
      • Plastic parts shall be fabricated from high quality thermoplastic which resists to solvent, stress cracking and flame retardant (UL94-VO) such as polycarbonate, ABS, polypropylene etc. applications. This plastic also resists deterioration when exposed to the ultraviolet ray of the sun for long life.
      • Steel Material parts shall be High quality materials and have no rust throughout the lifetime.
      • Bending radius in fibre storage area: ≥30mm
  4. Lightning Protection Performances:
    • The cabinet is insulated from the high voltage protection devices. Insulation resistance (IR): ≥20000MΩ/500V(DC).
    • The withstand voltage between the high voltage protection device and the cabinet is ≥3000V (DC/1 min). No break-through or flash-over.
