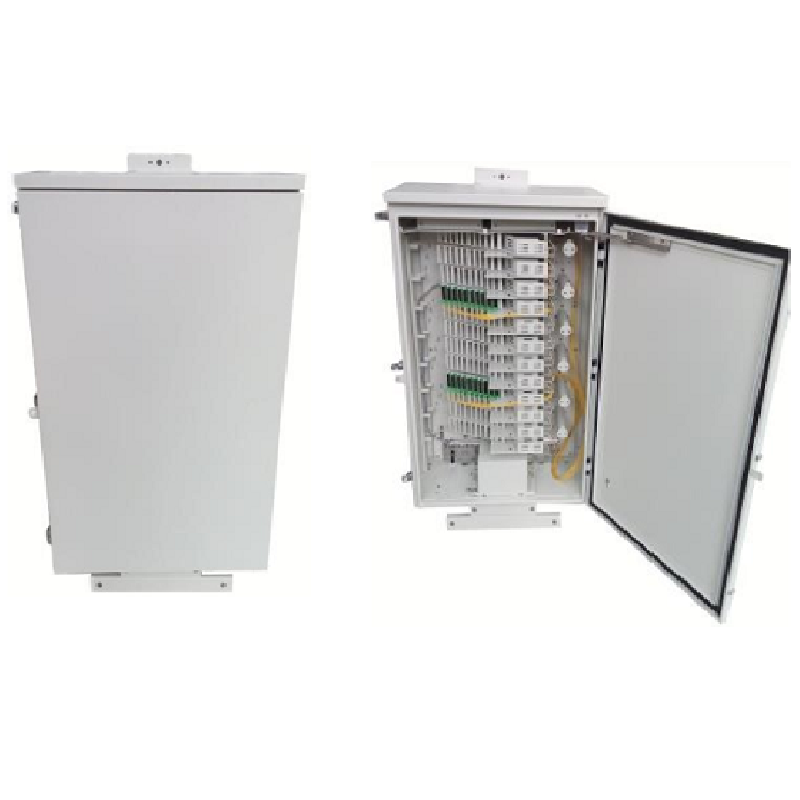

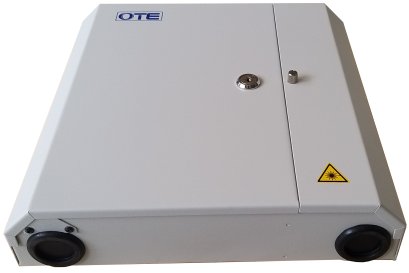

GENERAL Optical Distribution Frame STREET Cabinet, with large capacity, is designed to provide fibre splicing, splitting, cross connection, along with optical cable routing, for outdoor applications and in fibre optic Access Network.
Front operation structure. Easy operation and maintenance
Paint with priming lon phosphate treatments and powder coating for housing. Provides sealing and locking mechanism for cable inlet
High quality Aluminums plate and die stamping for mechanical parts, which features spray coating surface treatment ensuring high strength and excellent corrosion proof performance
Offers anti-aging performance. Provides high strength, light weight. Available with acid-base, corrosion heat, and humidity proof performances
Provides integrated splicing and distribution trays. With compact structure and complies with FC, SC, ST and LC termination requirements of the optical fibre connectors
Work temperature: -40 °C ~ +60°C ;
Relative humidity: ≤90% (+40°C)
Atmospheric Pressure: 70KPa~106Kpa.
Dimension and Weight
Dimensions (H x W x D): ≤1700 x ≤1200 x ≤400 (mm)
Weight: ≤ 2600kg. with Full Equipment
Materials and Accessories
PC insertion loss: ≤0.2dB, APC insertion loss: ≤0.3dB
PC return loss: >50dB, APC return loss: >60dB
Life: >1000 times (plug-in & pull-out).
Plastic parts shall be fabricated from high quality thermoplastic which resists to solvent, stress cracking and flame retardant (UL94-VO) such as polycarbonate, ABS, polypropylene etc. applications. This plastic also resists deterioration when exposed to the ultraviolet ray of the sun for long life.
Steel Material parts shall be High quality materials and have no rust throughout the lifetime.
Bending radius in fibre storage area: ≥30mm
Lightning Protection Performances:
The cabinet is insulated from the high voltage protection devices. Insulation resistance (IR): ≥20000MΩ/500V(DC).
The withstand voltage between the high voltage protection device and the cabinet is ≥3000V (DC/1 min). No break-through or flash-over.
